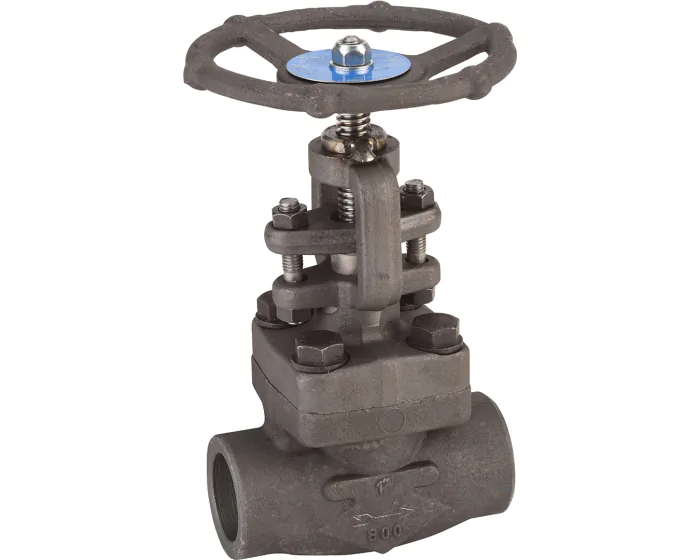

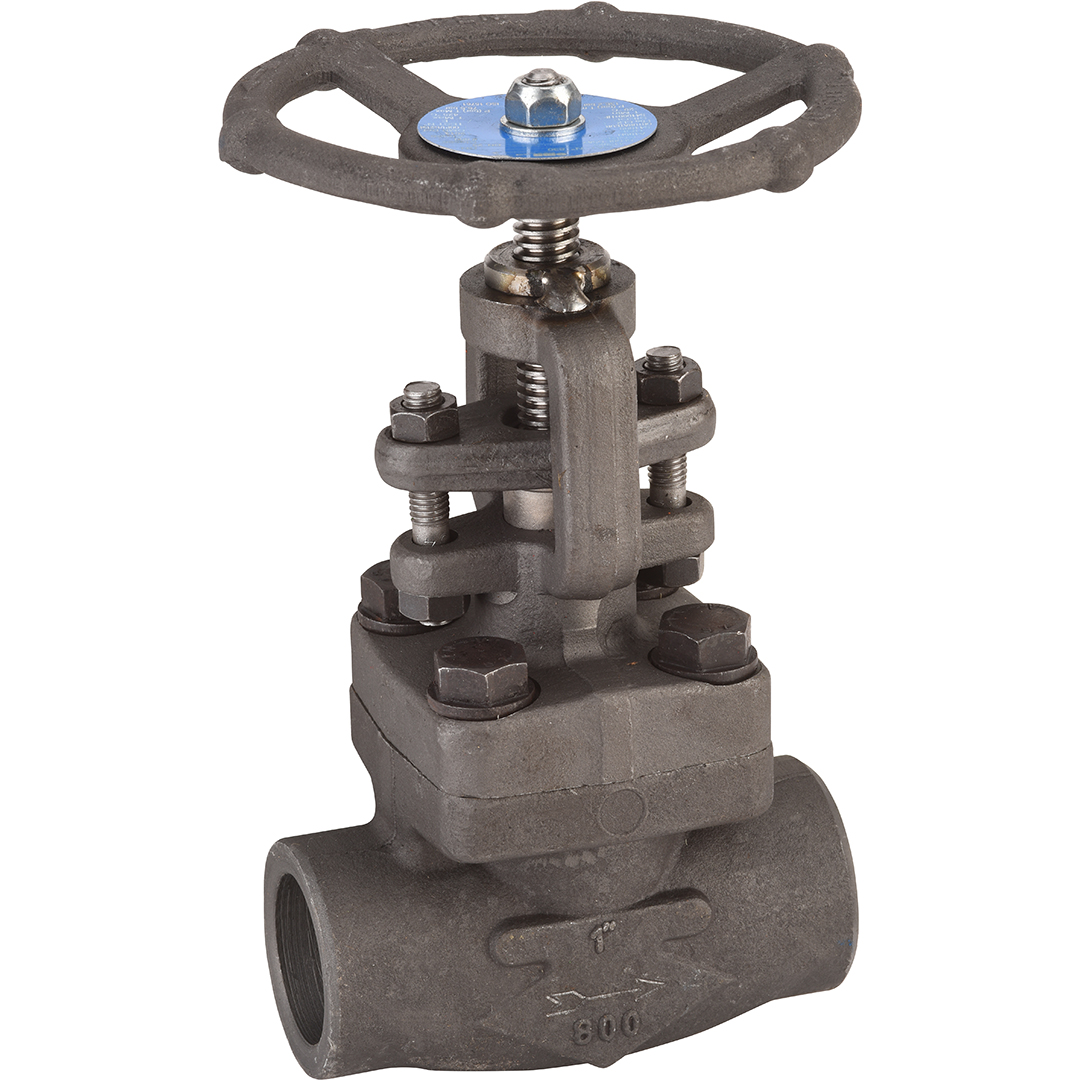

Carbon steel A350LF2 globe valve 422 TRIM 16 1500 lbs NPT 1/2''
€86.07
(excl. btw)
Carbon steel A350LF2 globe valve 422 TRIM 16 1500 lbs NPT 1/2"
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A350 LF2 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 16 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 90.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 1.3 |
| Body material | Carbon steel ASTM A350 LF2 |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 255 |
| Connections | NPT FF |
| TS max (°C) | 425 |
| TS min (°C) | -46 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Carbon steel ASTM A350 LF2 Standard 1/2'' | 422004 | S1007553 |
€86.07
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 3/4'' | 422005 | S1007554 |
€117.59
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 1'' | 422006 | S1007555 |
€225.39
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 1''1/2 | 422008 | S1007556 |
€399.66
(excl. btw)
|
add to cart |
| NPT FF Carbon steel ASTM A350 LF2 Standard 2'' | 422009 | S1007557 |
€952.10
(excl. btw)
|
add to cart |
